IP VPN

Get A Secure, Resilient and Efficient IP VPN Service

Give your multi-site business a boost with Epsilon’s private, high-performance global network and enhance the responsiveness of your business applications.

Speak to a SpecialistDownload IP VPN Datasheet
IP VPN

BENEFITS

Greater User Experience, Higher Business Productivity

Using multi-protocol label switching (MPLS) technology, Epsilon’s IP VPN solution enhances the responsiveness of your business applications, speeds up transmissions and relieves network congestion.

Speak to a SpecialistIP VPN Datasheet
Enhanced Performance
Epsilon’s IP VPN provides added resiliency, stability, and low latency performance for delay-sensitive applications such as voice and video through mesh traffic routing.
Boosted Security
With built-in security features, Epsilon’s IP VPN enables your data to always remain secure even when using a public network transport.
Optimised Spend
Enjoy the flexibility to choose your preferred last mile access network to derive greater value and cost efficiency.
Managed Traffic Priority
Gain the capability to easily segment and prioritise your network traffic streams according to Quality of Service (QoS) for greater performance and user experience.
Accelerated Scalability
Easily meet your evolving business needs through scalable bandwidth starting from as low as 2Mbps
24x7 Customer Support
Be assured of quality with our fully managed service and 24×7 customer support by our team of experts.
Diagram of how MPLS IP VPN works

How MPLS IP VPN Works

The primary connectivity of Epsilon’s IP VPN service are Ethernet circuits from the customer site or data centre to Epsilon’s MPLS fabric. This can be either Epsilon’s Data Centre Interconnect, or a partner’s Layer 2 (L2) Ethernet service or Layer 3 (L3) service.

In addition to L2 Ethernet access, Epsilon can also connect sites over an Internet service, which can be from Epsilon or by the Enterprise. SLAs will only be provided for Internet services by Epsilon.

The following bandwidths are available:

  • From 2M to 10M: in increments of 2M
  • From 10M to 100M: in increments of 10M
  • From 100M to 1Gb: in increments of 100M
  • From 1G to 10G: in increments of 1G

ACCESS RESILIENCE OPTIONS

Building a End-to-end Network of Your Choice

Last mile access may be configured with primary and secondary links from customer sites, in the form of private Ethernet circuits. The following last mile access configurations are offered:

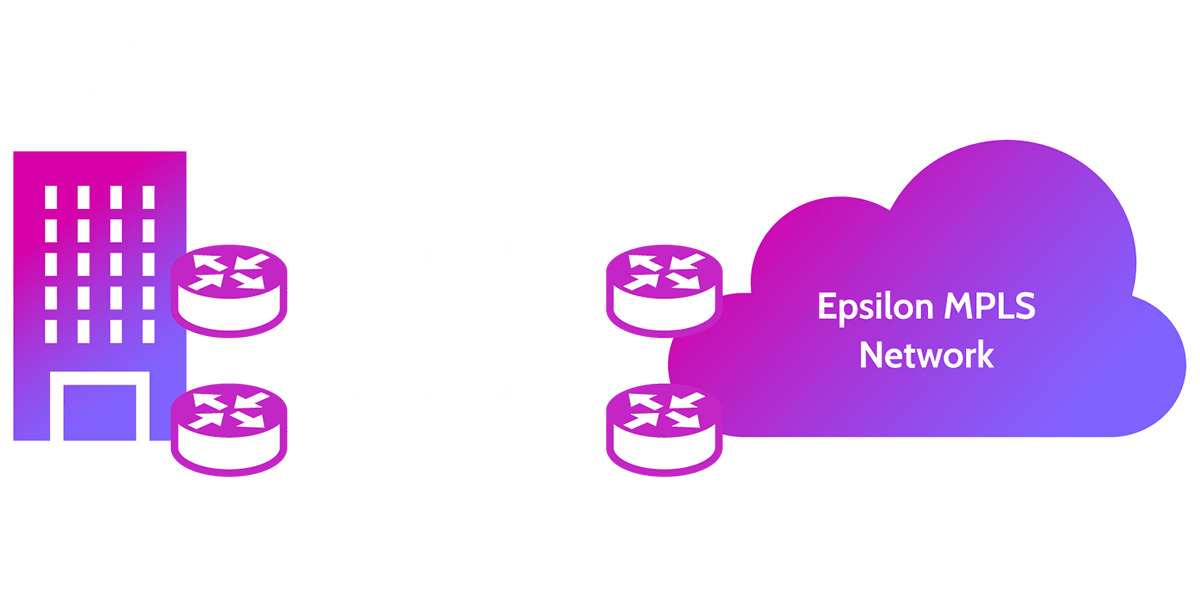

Full Access Circuit & CPE Diversity

The primary and secondary links are fully diverse from each other and can be provided by a single access provider with diverse fibre access or by different providers.

If both the links are provided by a single service provider, Epsilon will ensure that they are using diverse routes, i.e., two fibre routes connecting to two different PE routers.

Full Access Circuit Diversity, Single CPE

The primary and secondary links will be a protected Ethernet circuit from a single service provider and connects to different PE routers. The paths are not diverse from each other.

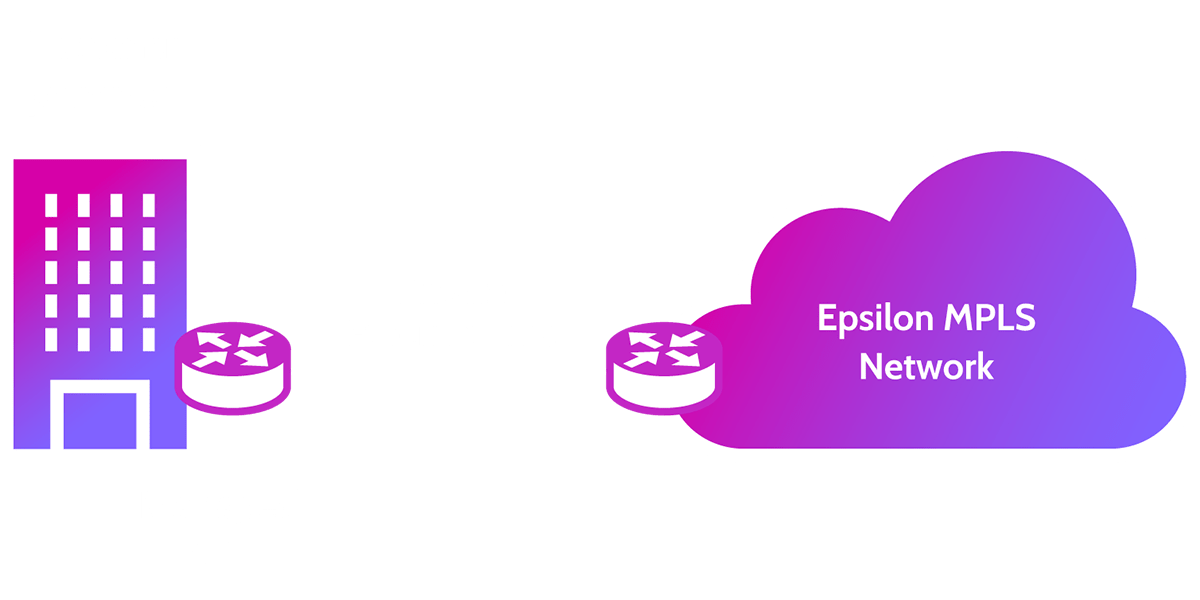

Single Access, Single CPE

The last mile service will be an unprotected service. Access can be via Ethernet, Internet access based on Ethernet, Fibre to the Cabinet (FTTC) or Fibre to the Premise (FTTP).

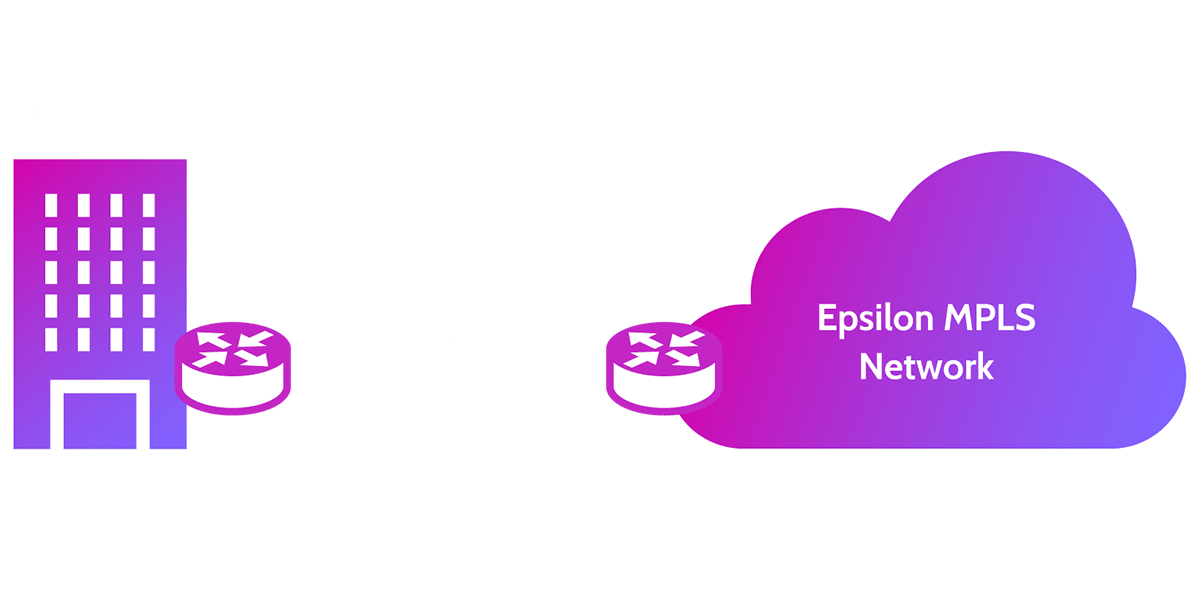

Secure Fixed Internet Access

The last mile service will be an unprotected service. Access can be via Ethernet, Fibre to the Cabinet (FTTC) or Fibre to the Premise (FTTP).

Access is secured by an IPsec encrypted tunnel from the CPE router terminating on a security gateway in Epsilon’s Point of Presence.

USE CASES

Keeping Your Business Data Connected

Epsilon’s IP VPN solution ensures that your global business sites and data are connected to a flexible, private network and provides capacity, visibility, and self-service features for greater control.

Get a glimpse of how our solutions can support your core business functions more effectively and efficiently through uninterrupted, secure global connectivity for your users and devices anywhere, every time.

Keep your business data connected

Enabling global multi-site connectivity for a remote workforce

Driven by global mobility to support your growing mobile workforce?

Gain low latency, end-to-end connectivity across multiple business sites globally, even in remote locations through an optimal combination of network services to ensure the sustainability and security of your business operations.

Low latency network for bandwidth-critical applications

Seeking guaranteed bandwidth for mission-critical applications such as VoIP and Video Conferencing?

Efficiently prioritise your network traffic based on application type through Epsilon’s IP VPN’s Quality of Service (QoS) to minimise jitter and packet loss for mission-critical applications to improve application delivery and enhance performance and user experience.

Epsilon’s IP VPN supports three levels of QoS:

  • Gold for applications such as Voice and Unified Communications as a Service (UCaaS)
  • Silver for business-critical applications such as SAP or Citrix
  • Bronze for email and general Internet browsing

Streamlined network management for multi-cloud services

Require a new WAN strategy to support your increasing reliance on cloud-based applications?

Adopting an agile, application-oriented, and dynamic network solution such as Epsilon’s IP VPN will aid in improving cloud-based applications’ performance and lower latency to enable cloud connectivity on demand.

YOUR TRUSTED PROVIDER

Dedicated IP VPN Connectivity,
Fully Managed for You

Empower your business with a secure and reliable network to connect your mission-critical applications with Epsilon’s IP VPN service. As your trusted one-stop managed service provider, we are here for you 24×7 to ensure that you enjoy seamless global connectivity and support.

End-to-end Optimised Connectivity

As your one-stop solution provider, we provide optimised end-to-end connectivity from last mile access to cloud connectivity to drive your business operations efficiently.

Greater Network Visibility

Simplify your network management with Epsilon’s monitoring tools and proactively access end-to-end metrics to ensure optimal network performance and business productivity.

Unparalleled Global Reach

With an expansive global network fabric of 300 Points of Presence (PoPs) worldwide, we assure you connectivity even to the most remote locations.

Scalable, Granular Bandwidth

Scale your connectivity on-demand, with bandwidth options ranging from 2Mbps up to 10Gbps, with granular increments in between.

THE SOLUTION

A Simplified, Fully Managed Service

Epsilon’s IP VPN service streamlines your network management through our professional and managed services which ensures complete network support, technical assessment reviews, and more.

Professional Services

Epsilon’s professional services cover implementation and change management to enable you to achieve your business objectives and are delivered remotely for convenience. Services include solution and site deployment, migration, relocation, or change of existing configuration.

Managed Services

Epsilon’s managed services cover service management and proactive monitoring of CPE health and WAN connectivity to provide you with greater efficiency and ease of mind. With a dedicated service manager assigned to you, services include day-to-day operational support for your network infrastructure, incident management, and regular review and reporting.

IP VPN SERVICE

Ready to secure your global network?

Talk to an Expert

Frequently Asked Questions

1. What is IP VPN service?

Epsilon’s Internet Protocol Virtual Private Network (IP VPN) uses multi-protocol label switching (MPLS) technology to provide multi-site businesses with the security expected of a private network. It holds significant benefits of a shared network in terms of cost and optimal connectivity.

2. How does IP VPN work?

Epsilon’s IP VPN service is a Layer 3 any-to-any private Wide Area Network (WAN) service that is bundled with managed Customer Premise Equipment (CPE) for end-to-end managed connectivity that is efficient and secure.

This solution is suitable for a variety of site types ranging from data centres to regional offices and branches. Last mile access can be delivered via a private Ethernet service or Internet via IPSec tunnels depending on your business requirements.

3. Is Quality of Service (QoS) available for Internet-based Access?

There is no guaranteed Quality of Service when utilising the Internet as an access method. However, Epsilon’s access solution secures all Internet connectivity with IPsec from the CPE to a gateway to MPLS.

4. Can I access Cloud services using IP VPN?

Epsilon’s IP VPN includes cloud routing to Virtual Private Clouds on Microsoft Azure, AWS, Google and more. The virtual instance in the cloud then becomes an end point in the network where any user can connect to it.

5. What’s the difference between IP VPN and MPLS?

IP VPN provides greater flexibility and control of one’s network, compared to MPLS. In addition to relying on MPLS infrastructure to provide a secure, private network, IP VPN can also operate on the public Internet to connect sites.
